Essential Tools for Electrical Tasks
In tackling any electrical project, having the right tools is paramount. This section will guide you through the necessary equipment that ensures efficiency and safety while working on your machine’s electrical components. By being well-prepared, I can streamline the process and reduce the chances of errors or accidents.
Basic Toolkit Essentials
To get started, here’s a list of fundamental tools that are indispensable for any electrical work:
- Multimeter: This versatile instrument allows me to measure voltage, current, and resistance, helping diagnose any electrical issues effectively.
- Screwdrivers: A set of both flathead and Phillips screwdrivers is crucial for loosening and tightening connections.

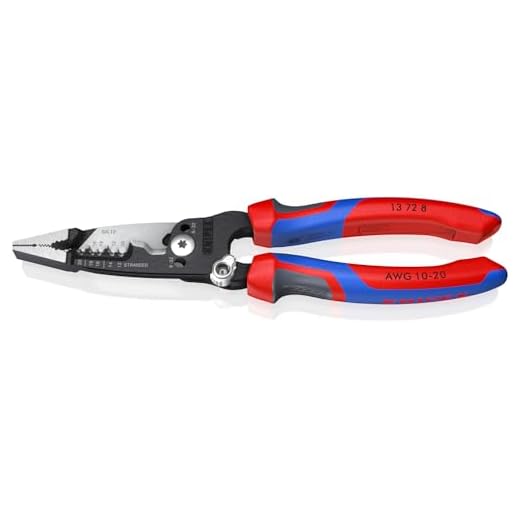

- Wire Cutters/Strippers: These tools are essential for cutting and stripping insulation from wires, ensuring a clean connection.
- Wrenches: A set of adjustable wrenches is useful for securing nuts and bolts that may be part of the electrical assembly.
- Insulation Tape: This is crucial for protecting exposed wires and preventing short circuits.
Advanced Tools for Specific Tasks
Depending on the complexity of the electrical work, I might also consider these additional tools:
- Soldering Iron: For making permanent connections, a soldering iron can be invaluable.
- Heat Shrink Tubing: This provides an extra layer of protection for connections, especially in areas prone to moisture.
- Electrical Connector Kits: Having a variety of connectors on hand ensures that I can make secure and reliable connections.
- Safety Goggles: Protecting my eyes while working is a must, especially when cutting or stripping wires.
- Gloves: Insulated gloves can help protect against electrical shocks and ensure safety during the process.
By assembling this toolkit, I am well-equipped to handle various electrical tasks efficiently and safely, which ultimately contributes to the optimal performance of my equipment.
Identifying Common Electrical Issues
In my experience, understanding the common electrical problems that can arise in garden machinery is crucial for effective troubleshooting and maintenance. These issues often manifest in various ways, and recognizing their signs is the first step toward resolution. By familiarizing myself with these frequent malfunctions, I can ensure the equipment operates smoothly and efficiently.
Signs of Electrical Problems
Several symptoms can indicate underlying electrical issues. Recognizing these signs early can save time and prevent more extensive damage. Below are some of the most common indicators:
| Symptom | Possible Cause |
|---|---|
| Equipment won’t start | Dead battery, faulty ignition switch |
| Intermittent power loss | Loose connections, damaged wiring |
| Unusual noises | Faulty electrical components |
| Burning smell | Overheating wires, short circuit |
| Flickering lights | Voltage fluctuations, poor connections |
Common Electrical Issues
Through observation and experience, I have encountered several typical electrical issues that tend to arise. Each of these problems has its own set of characteristics and potential solutions:
1. Dead Battery: A common dilemma, often caused by neglect or wear. Regular checks and maintenance can prevent this issue.
2. Faulty Ignition Switch: If the engine fails to start despite a charged battery, it might be due to a malfunctioning ignition switch that needs replacement.
3. Loose Connections: Over time, connections can become loose, leading to intermittent power loss. It’s essential to inspect and tighten connections regularly.
4. Damaged Wiring: Frayed or damaged wires can cause shorts or power loss. Regular visual inspections can help detect these issues early.
By maintaining awareness of these common electrical problems, I can take proactive measures to ensure my equipment remains in top condition. Regular maintenance checks and a keen eye for detail can make a significant difference in performance and longevity.
Step-by-Step Wiring Instructions
In this section, I will guide you through the detailed process of connecting the electrical components of your machine. Proper understanding and execution of these steps will ensure that everything functions as intended, maintaining efficiency and safety.
Before diving into the specifics, it’s essential to have a clear workspace and a solid plan. Here’s what I recommend:
- Gather all necessary tools and components.
- Review the wiring diagram specific to your model.
- Ensure all power sources are disconnected to prevent accidents.
Now, let’s proceed with the instructions:
1. Disconnect the Battery
Always start by disconnecting the battery to avoid any electrical shocks. This safety measure is crucial when working with any electrical systems.
2. Identify the Components
Familiarize yourself with the various parts you will be dealing with:
- Ignition switch
- Starter motor
- Battery
- Fuses
- Ground connections
3. Connect the Battery
Begin by connecting the positive terminal of the battery to the ignition system. Ensure that the connection is tight and secure to prevent any power loss.
4. Wiring the Ignition Switch
Next, connect the ignition switch according to the wiring diagram. Typically, this involves:
- Linking the battery terminal to the switch.
- Connecting the switch to the starter motor.
- Ensuring that the ground wire is firmly attached.
5. Install the Starter Motor
After securing the ignition switch, proceed to the starter motor. Connect it to the battery and ignition switch, ensuring all connections are snug and free from corrosion.
6. Check for Ground Connections
It’s vital to ensure that all ground connections are secure. A poor ground can lead to various issues, so double-check these connections to guarantee optimal functionality.
7. Final Checks
Once everything is connected, take a moment to review your work:
- Verify that all connections are tight.
- Ensure there are no exposed wires that could cause shorts.
- Reconnect the battery and test the system.
By following these steps carefully, you can successfully connect the electrical components, ensuring that your device operates smoothly and effectively. Remember, patience and attention to detail are key to a successful outcome.
Safety Precautions During the Wiring Process
When embarking on any electrical project, I find it crucial to prioritize safety above all else. Working with electrical components can pose various risks, and being mindful of these hazards can significantly reduce the chance of accidents or injuries. By implementing specific safety measures, I ensure a smooth and secure experience throughout the entire procedure.
1. Disconnect Power Sources: Before I begin any task, my first step is to disconnect all power sources. This includes unplugging the machine from any electrical outlets and removing the battery if applicable. This simple action prevents accidental starts and protects me from electric shocks.
2. Use Appropriate Personal Protective Equipment: I always equip myself with the right personal protective gear. Wearing safety goggles, gloves, and sturdy footwear helps safeguard against potential hazards. In addition, I make sure my clothing is not loose or baggy to avoid entanglement in moving parts.
3. Work in a Well-Lit Area: Ensuring that my workspace is adequately illuminated is essential. A well-lit environment allows me to see all components clearly and reduces the risk of mistakes that could lead to accidents. I make it a point to eliminate shadows or dark spots where I might misjudge connections.
4. Keep Tools Organized: I find that keeping my tools organized and within reach helps maintain focus and efficiency. It prevents me from searching for items while working, which could lead to distractions and unsafe conditions. A tidy workspace is also less likely to trip me up.
5. Be Aware of Surroundings: It’s important for me to stay aware of my surroundings. I always check for any potential hazards, such as liquids or clutter, that could pose a risk while I’m working. Maintaining a clean and safe environment is vital to prevent accidents.
6. Follow Manufacturer’s Guidelines: I make it a point to reference the manufacturer’s guidelines and wiring diagrams. Following these instructions ensures that I am working within the recommended parameters, reducing the likelihood of errors that could lead to malfunctions or safety issues.
7. Have a Fire Extinguisher Accessible: As a precaution, I keep a fire extinguisher nearby when working with electrical components. This preparedness allows me to quickly address any unforeseen situations, such as sparks or overheating, ensuring safety at all times.
By adhering to these safety precautions, I create a secure atmosphere for myself and anyone nearby during the electrical tasks. With proper care and attention, I can confidently tackle the challenges of electrical work while minimizing risks.
Step-by-Step Wiring Instructions
In this section, I will guide you through the intricate process of establishing connections within your gardening equipment. This task may seem daunting at first, but with the right approach and a bit of patience, anyone can successfully navigate through the necessary steps to ensure everything operates smoothly. I will break down the process into manageable parts, making it easier for you to follow along and replicate.
Preparation Stage
Before diving into the task, it is crucial to prepare adequately. Start by disconnecting the power supply to avoid any potential hazards. Gather all essential tools, including a multimeter, wire strippers, and connectors. Ensure you have a clear workspace with good lighting, allowing you to see the intricate details clearly. Familiarize yourself with the specific layout of your equipment’s electrical system, as this will make the process much smoother.
Connecting the Components
Once you are ready, begin by identifying the various components that require connection. Carefully strip the ends of the wires, making sure not to damage the copper strands. Next, connect the wires according to the schematic diagram provided for your specific model. This is where attention to detail is paramount; ensure that each connection is secure and properly insulated to prevent any short circuits. After completing all connections, double-check your work before reapplying power to the system.
Step-by-Step Wiring Instructions
In this section, I will share a comprehensive guide to help you navigate the intricate process of connecting electrical components in your garden machine. This is crucial for ensuring everything operates seamlessly, and I want to make this task as straightforward as possible for you. By following these steps, you’ll gain confidence in your ability to tackle similar projects in the future.
Preparation and Planning
Before diving into the wiring process, it’s essential to prepare adequately. Here’s what you should do:
- Gather all necessary tools and materials.
- Read the machine’s manual to understand the wiring diagram.
- Ensure you have a clean, well-lit workspace.
- Disconnect the power source to prevent any accidents.
Step-by-Step Connection Process
Now that you’re prepared, let’s move on to the connection process:
- Identify the Components: Locate the battery, ignition switch, and any other relevant parts that need to be connected.
- Connect the Battery: Start by attaching the positive terminal of the battery. Make sure it’s secure before moving on.
- Wiring the Ignition Switch: Connect the wires from the ignition switch to the appropriate terminals on the battery and starter. Refer to the wiring diagram for accuracy.
- Secure the Connections: Use electrical tape or heat shrink tubing to insulate any exposed wires. This prevents short circuits and enhances safety.
- Double-Check Your Work: Go over each connection to ensure everything is in place and secure.
- Reconnect the Power: Once you are confident that all connections are correct, reconnect the power source.
- Test the System: Start the machine and check if everything is functioning properly. If you encounter any issues, revisit your connections.
By following these detailed instructions, you can effectively navigate the wiring process with confidence. Just remember to take your time and don’t rush through the steps. A well-done job will ensure your equipment operates efficiently and reliably for years to come.
FAQ
What tools do I need to straight wire a riding lawn mower?
To straight wire a riding lawn mower, you will need a few essential tools. First, gather wire strippers to remove insulation from the wires. A multimeter is useful for testing electrical connections and ensuring everything is functioning properly. You will also need a soldering iron and solder for making secure connections, or crimp connectors if you prefer a different method. Additionally, have some electrical tape or heat shrink tubing on hand to insulate the connections after you’re done. Lastly, a basic set of wrenches or screwdrivers may be required to access the mower’s wiring, depending on your specific model.
Can I straight wire my riding lawn mower myself, or should I hire a professional?
Whether you can straight wire your riding lawn mower yourself depends on your comfort level and experience with electrical systems. If you have a basic understanding of wiring and feel confident in your skills, you can follow a step-by-step guide to complete the task. However, if you are unfamiliar with electrical work or lack the necessary tools, it may be safer and more efficient to hire a professional. Incorrect wiring can lead to electrical shorts, fires, or damage to the mower. If you decide to do it yourself, make sure to disconnect the battery and follow safety protocols to avoid any accidents.
